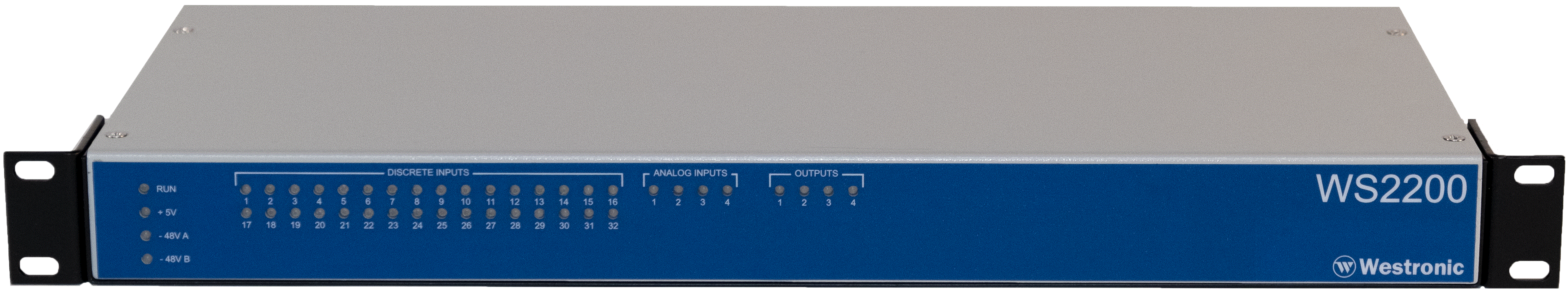

WS2200
The WS2200 can meet any remote alarming and monitoring needs. Featuring an extended temperature range and low power consumption, remote management, and distributed reporting; the WS2200 brings situational awareness from the network edge to the entire organization.
Features include: a variety of northbound reporting protocols, configured alarms can be viewed at a glance, and alarms can be hardwired or retrieved from local devices using southbound protocols making the WS2200 a flexible solution for network management.
Features and Benefits
Compatible with all the major Network Management Systems
- Modular appproach
- Distributed reporting
- Four analog inputs
- Low power consumption
- Many optional media interfaces
- SNMP and TL1 northbound interfaces
Specifications
Main Chassis | |
| CPU: | 32 bit, 800 MHz x86 Microcontroller |
| Power (V): | Dual -48 VDC/ monitored and alarmed |
| Dimensions (H x W x D): | 1.75” x 17.2” x 7.5” (without mounting brackets) |
| Weight: | 6.2 lb (2.81 kg) |
Discrete I/O Module | |
| Discreet Inputs: | |
| Contact Ratings: | 0.5 A at 60 VDC 0.5 A at 125 VAC 60 W (maximum) switching power |
General | |
| Storage Temperature: | -40 °F to +158 °F (-40 °C to +70 °C) |
| Operating Temperature: | -40 °F to +158 °F (-40 °C to +70 °C) |
| Relative Humidity: | 5% to 90% non-condensing |
Optional Equipment
- Optional E2A Collection Module.
- Optional Spectrum 215R Wallboard display.
- Modem Dial-Up and email/text feature available.
Configuration Utilities
Featuring an extended temperature range and low power consumption, remote management, and distributed reporting; the WS2200 brings situational awareness from the network edge to the entire organization.
Westronic offers the following PC based utilities to connect to the WS2200:
- WS Manager
- Maintain multiple RTU configurations
- Learn More
Allows a shared or local SQL database of RTU configurations for both the WS3500 and WS2200
Allows for a single point of access to the RTUs for user configuration with the WS Manager Connection Server. This allows for network separation between the WS Manager client and users, and the WS3500 and WS2200 RTUs.
Secure communication available for configuration
